Custom AAC Dry Bearing Ball Mill Suppliers

Home / Product / AAC line / 01.Slurry preparation section / Dry Bearing Ball Mill

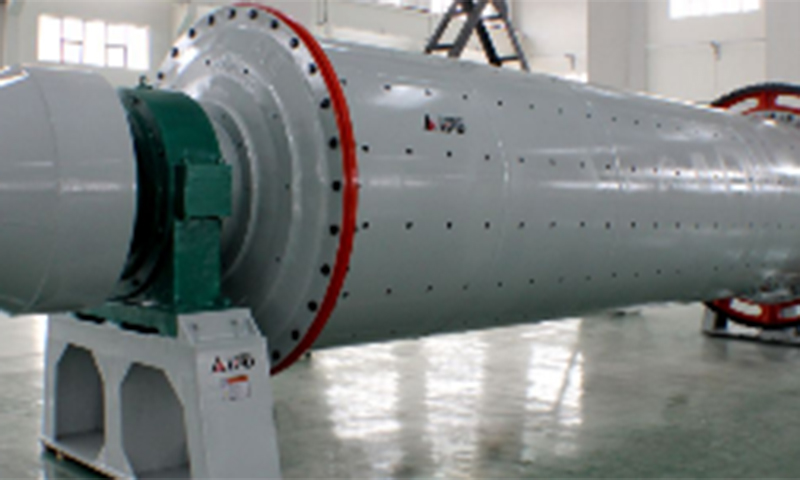

Dry Bearing Ball Mill

Purpose: The ball mill is the main equipment for grinding and mixing raw materials in AAC production line, fly ash, lime, gypsum, sand and other material only after grinding and reaching the required fineness while mixing and interacting in the ball mill, to achieve the strength requirements of raw materials of AAC products, therefore, ball mill is the key equipment for grinding raw materials after crushing.

  • Professional installation
  • 7x24 Hour Service
  • Speed Logistics

Wet Bearing Ball Mill

No next article
Product description

Model

 2.4*9m(selected according to customer output)

Body

 Material: Q235

 Thickness: δ22mm

Capacity

 16-19t/h(Grinding limestone, input material fineness≤5mm,Fineness is 0.08 square hole screen, and the fineness of the remaining 5-6% grinding material is controlled at 180-200 mesh)

Ball mill rotation speed

 20.4r/min

Kind of drive

 Edge drive

Cooling water consumption

 Water consumption of reducer 1.5m3/h

Loading capacity of grinding body

 38T

Lining material

 Low chromium alloy
Production line product

Concrete aeration production equipment is a device used to make lightweight concrete by injecting gas to increase air bubbles in the concrete to reduce density and improve the material's adiabatic properties.

RUNDING

+86 138 1503 0264

Message Inquiry

Related production line recommendation
Show All
  • Dry Bearing Ball Mill
    Dry Bearing Ball Mill

    Purpose: The ball mill is the main equipment for grinding and mixing raw materials in AAC production line, fly ash, lime, gypsum, sand and other material only after grinding and reaching the required fineness while mixing and interacting in the ball mill, to achieve the strength requirements of raw materials of AAC products, therefore, ball mill is the key equipment for grinding raw materials after crushing.

  • Wet Bearing Ball Mill
    Wet Bearing Ball Mill

    Purpose: Ball mill is the main equipment for grinding and mixing raw materials in AAC production line, fly ash, lime, gypsum, sand and other material only after grinding and reaching the required fineness while mixing and interacting in the ball mill, to achieve the strength requirements of raw materials of AAC products, therefore, ball mill is the key equipment for grinding raw materials after crushing.

  • Slurry Storage Tank
    Slurry Storage Tank

    Function: Use for storage slurry after ball mill or waste slurry Model: 8m³、10m³、20m³、50m³、100m³ Mixing form: Intermediate shaft style Mixing blade form: Lined from、Triangular form

  • Jaw Crusher
    Jaw Crusher

    Use: The jaw crusher crushing mode for the bending extrusion type, its working principle: the motor drives the belt and pulley, through the eccentric shaft to move the jaw up and down, when the jaw rises, the Angle between the elbow plate and the jaw becomes larger, to push the jaw plate to the fixed jaw plate close, at the same time the material is crushed or crushed, rubbing to achieve the purpose of crushing; When the moving jaw goes down, the Angle between the elbow plate and the moving jaw becomes smaller, the moving jaw plate leaves the fixed jaw plate under the action of the tie rod and the spring, and the broken material is discharged from the lower mouth of the crushing chamber. With the continuous rotation of the motor, the broken jaw is periodically crushed and discharged to achieve mass production.

  • Bucket Elevator
    Bucket Elevator

    Use: TH type bucket elevator with a ring chain as the traction component, the hopper is installed on the chain at a certain interval, the chain respectively bypassing the lifting head and the bottom of the transmission sprocket, forming a closed ring system with a rising loaded branch and a falling unloaded branch. The transmission device arranged in the head of the lifting machine transmits power to the chain through the head sprocket; When the material is added from the feed port at the bottom of the elevator, the hopper moving with the chain is lifted to the head discharge port after taking the material at the bottom of the elevator, and then the material is discharged from the discharge port under the double action of gravity and centrifugal force.

  • Belt Conveyor
    Belt Conveyor

    Usage: Feed raw material into a ball mill

About Us
Jiangsu Runding Intelligent Equipment Technology Co., Ltd.
Jiangsu Runding Intelligent Equipment Technology Co., Ltd.

        Jiangsu Runding founded in 2011, is Custom AAC Dry Bearing Ball Mill Suppliers and China OEM AAC Dry Bearing Ball MillManufacturers and Factory, is an innovative intelligent technology company focusing on AAC block and AAC panel intelligent production line equipment and AAC products intelligent factory ecological chain construction.

The company is headquartered in Nandu Intelligent Equipment Industrial Park, Liyang City, Jiangsu Province, integrating research and development, production, sales and service. The company's innovative AAC production line intelligent equipment, intelligent factory management, AAC process formula and etc., serve many customers at domestic and overseas, promote the technical innovation of the AAC industry, win the industry consensus recognition and good market reputation, and export China's intelligent manufacturing to the world.

Runding company firmly established the guiding position in the AAC production line intelligent equipment industry, Runding people focus on technology, quality and innovation, to ensure advanced equipment, stability and economy, providing customers with professional and satisfactory AAC intelligent products overall solution.

We sincerely look forward to visits and exchanges from all walks of life, and jointly contribute to the development of green building materials and the promotion of global carbon neutrality.

Certificate Of Honor
  • Certificate
  • Certificate
  • Certificate
  • Certificate
  • Certificate
  • Certificate
News
Message Feedback

industry knowledge

What innovative technologies does Jiangsu Runding have in the research and development of AAC Dry Bearing Ball Mill, and how to ensure the efficiency and stability of the equipment?

Since its establishment in 2011, Jiangsu Runding Intelligent Equipment Technology Co., Ltd. has gradually developed into an excellent domestic manufacturer and factory of AAC blocks, AAC plate intelligent production line equipment and AAC products. With its strong R&D strength, excellent production capacity and perfect service system, the company has won widespread praise from customers at home and abroad. In the research and development of AAC dry bearing ball mill, Jiangsu Running also demonstrated the unique advantages of innovative technology to ensure efficient and stable operation of the equipment.

1. Innovative technology leads industry development
Advanced design concepts
 Jiangsu Runding integrates the concepts of intelligence and automation into the design of the AAC dry bearing ball mill. Through advanced sensor technology and control systems, it achieves real-time monitoring and precise control of the operating status of the mill, which not only improves the operating efficiency of the mill , also reduces energy consumption and failure rate, bringing significant economic benefits to users.

Unique bearing structure
One of the key components of the AAC dry bearing ball mill is the bearing. Jiangsu Runding has innovated the bearing structure and adopted dry lubrication technology, which reduces the use of lubricating oil, reduces maintenance costs, and improves the wear resistance and service life of the bearing. In addition, dry bearings also have better environmental adaptability and can maintain stable performance in harsh working environments.

Efficient grinding media
In order to improve the grinding efficiency of the mill, Jiangsu Runding conducted in-depth research on the grinding media and selected grinding balls with high hardness, good wear resistance and good impact toughness, which can form an effective grinding area in the mill, improve grinding efficiency and product quality.

Optimized mill structure
 Jiangsu Runding has optimized the structure of the AAC dry bearing ball mill to make it more compact and reasonable. This design not only reduces the floor space, but also improves the stability and operating efficiency of the mill. At the same time, the optimized structure also makes the mill more efficient. Maintenance and maintenance are more convenient and faster.

2. Measures to ensure efficient and stable operation of equipment
Strict quality control
 Jiangsu Runding has implemented strict quality control measures in the production process of AAC dry bearing ball mills. From raw material procurement to production and processing, assembly and debugging, every link has undergone strict inspection and testing to ensure that product quality and performance meet design requirements.

Perfect after-sales service
 Jiangsu Running has established a complete after-sales service system to provide users with comprehensive technical support and maintenance services. Whether it is equipment installation and commissioning, operation training or troubleshooting, Jiangsu Running can provide users with professional solutions in the shortest possible time. This comprehensive service guarantee ensures that users can give full play to the performance advantages of AAC dry bearing ball mills during use.

Continuous technological innovation
 Jiangsu Runding knows that technological innovation is the core driving force for enterprise development, so they continue to invest in research and development resources to explore new technologies and methods to improve the performance and efficiency of AAC dry bearing ball mills. Through cooperation with well-known scientific research institutions and universities at home and abroad, Jiangsu Runding continuously introduces new technologies, new processes, and new materials, providing strong support for the continuous improvement and innovation of products.

Customized solutions
 Jiangsu Runding understands the importance of user needs and provides customized AAC dry bearing ball mill solutions based on the actual needs and working environment of different users. This personalized service not only meets the special needs of users, but also improves the equipment.​​ applicability and operational efficiency.
