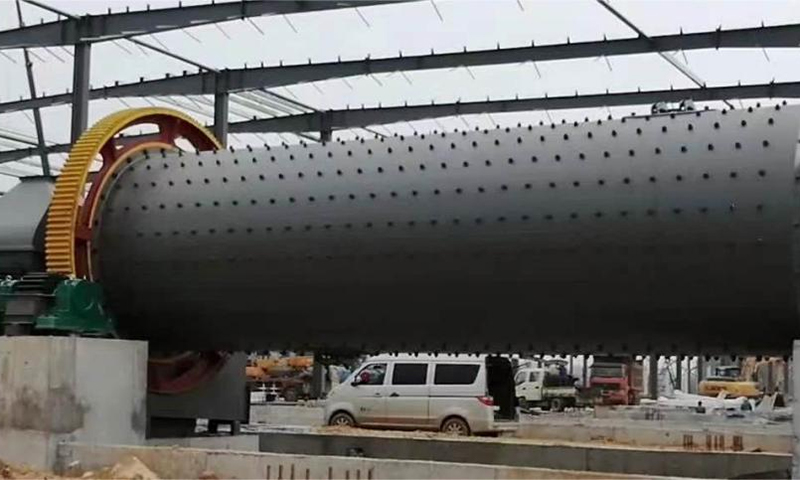

Wet Bearing Ball Mill

Purpose: Ball mill is the main equipment for grinding and mixing raw materials in AAC production line, fly ash, lime, gypsum, sand and other material only after grinding and reaching the required fineness while mixing and interacting in the ball mill, to achieve the strength requirements of raw materials of AAC products, therefore, ball mill is the key equipment for grinding raw materials after crushing.

  • Professional installation
  • 7x24 Hour Service
  • Speed Logistics

Slurry Storage Tank

Dry Bearing Ball Mill
Product description

Model

 φ2.6×13m(selected according to customer output)

Capacity

 ~35t/h(Wet open flow, grinding ordinary river sand, inlet the grinding material particle size ≤5mm, fineness of 0.08 square hole screen, the remaining 5-6% of the grinding material fineness control in 180-200 mesh)

Ball mill rotation speed

 21.4r/min

Effective volume

 64m3

Transmission mode

 Edge drive

Loading capacity of grinding body

 ≥78T

Body (waterproof treatment)

Overall size: φ2890mm×13420mm

 Material: Q235B

 End plate thickness: δ80mm

 Body plate thickness: δ32mm

 Total weight: ~32T

Lining material

 Rubber lining

Body liner thickness

 50mm

End liner thickness

 70mm

Layer thickness

 140mm

Total weight

 ~12t

Tile body

 Integral outer spherical aligning plain bearing for ball mill
Production line product

Concrete aeration production equipment is a device used to make lightweight concrete by injecting gas to increase air bubbles in the concrete to reduce density and improve the material's adiabatic properties.
