Custom AAC Mould Tilting Crane & Hoister Suppliers

Home / Product / AAC line / 03.Tilting,cutting section / Mould Tilting Crane & Hoister

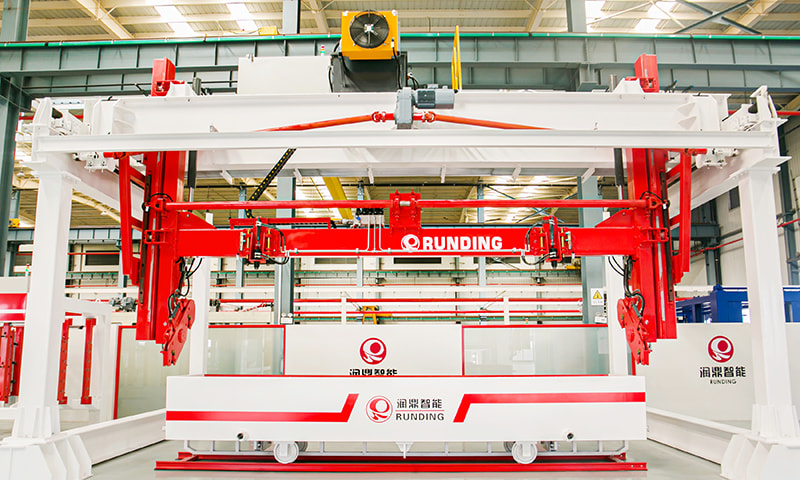

Mould Tilting Crane & Hoister

Function:

1. Lift the mould with the cake, tilting 90 degrees to the cutting trolley, then unlock and remove the mould for cutting the cake.

2. The empty mould is combined with the side plate, tightened, then tilted 90 degrees to put the mould at the return line

  • Professional installation
  • 7x24 Hour Service
  • Speed Logistics

Pre-Cutting Machine

No next article
Product description

Model:

1. Follow cake length: 4.2m, 4.8m, 5.4m, 6m, etc.

2. The mold lock type: hydraulic motor

3. Crane span: ≤8000mm（4.2m、4.8m）、≤9000mm（6m）

4. Crane walking type: Gear rack

Equipment characteristics:

1. The machine frame, walking beam, and hoister all adopt the machining center as a whole processing; High machining precision, stable operation, and connected rails precisely.

2. Gear rack frequency conversion walking, walking speed: 0 ~ 60m/min, encoder control, flexible start, smooth start, fast running speed, accurate positioning

Production line product

Concrete aeration production equipment is a device used to make lightweight concrete by injecting gas to increase air bubbles in the concrete to reduce density and improve the material's adiabatic properties.

RUNDING

+86 138 1503 0264

Message Inquiry

Related production line recommendation
Show All
  • Dry Bearing Ball Mill
    Dry Bearing Ball Mill

    Purpose: The ball mill is the main equipment for grinding and mixing raw materials in AAC production line, fly ash, lime, gypsum, sand and other material only after grinding and reaching the required fineness while mixing and interacting in the ball mill, to achieve the strength requirements of raw materials of AAC products, therefore, ball mill is the key equipment for grinding raw materials after crushing.

  • Wet Bearing Ball Mill
    Wet Bearing Ball Mill

    Purpose: Ball mill is the main equipment for grinding and mixing raw materials in AAC production line, fly ash, lime, gypsum, sand and other material only after grinding and reaching the required fineness while mixing and interacting in the ball mill, to achieve the strength requirements of raw materials of AAC products, therefore, ball mill is the key equipment for grinding raw materials after crushing.

  • Slurry Storage Tank
    Slurry Storage Tank

    Function: Use for storage slurry after ball mill or waste slurry Model: 8m³、10m³、20m³、50m³、100m³ Mixing form: Intermediate shaft style Mixing blade form: Lined from、Triangular form

  • Jaw Crusher
    Jaw Crusher

    Use: The jaw crusher crushing mode for the bending extrusion type, its working principle: the motor drives the belt and pulley, through the eccentric shaft to move the jaw up and down, when the jaw rises, the Angle between the elbow plate and the jaw becomes larger, to push the jaw plate to the fixed jaw plate close, at the same time the material is crushed or crushed, rubbing to achieve the purpose of crushing; When the moving jaw goes down, the Angle between the elbow plate and the moving jaw becomes smaller, the moving jaw plate leaves the fixed jaw plate under the action of the tie rod and the spring, and the broken material is discharged from the lower mouth of the crushing chamber. With the continuous rotation of the motor, the broken jaw is periodically crushed and discharged to achieve mass production.

  • Bucket Elevator
    Bucket Elevator

    Use: TH type bucket elevator with a ring chain as the traction component, the hopper is installed on the chain at a certain interval, the chain respectively bypassing the lifting head and the bottom of the transmission sprocket, forming a closed ring system with a rising loaded branch and a falling unloaded branch. The transmission device arranged in the head of the lifting machine transmits power to the chain through the head sprocket; When the material is added from the feed port at the bottom of the elevator, the hopper moving with the chain is lifted to the head discharge port after taking the material at the bottom of the elevator, and then the material is discharged from the discharge port under the double action of gravity and centrifugal force.

  • Belt Conveyor
    Belt Conveyor

    Usage: Feed raw material into a ball mill

About Us
Jiangsu Runding Intelligent Equipment Technology Co., Ltd.
Jiangsu Runding Intelligent Equipment Technology Co., Ltd.

        Jiangsu Runding founded in 2011, is Custom AAC Mould Tilting Crane & Hoister Suppliers and China OEM AAC Mould Tilting Crane & HoisterManufacturers and Factory, is an innovative intelligent technology company focusing on AAC block and AAC panel intelligent production line equipment and AAC products intelligent factory ecological chain construction.

The company is headquartered in Nandu Intelligent Equipment Industrial Park, Liyang City, Jiangsu Province, integrating research and development, production, sales and service. The company's innovative AAC production line intelligent equipment, intelligent factory management, AAC process formula and etc., serve many customers at domestic and overseas, promote the technical innovation of the AAC industry, win the industry consensus recognition and good market reputation, and export China's intelligent manufacturing to the world.

Runding company firmly established the guiding position in the AAC production line intelligent equipment industry, Runding people focus on technology, quality and innovation, to ensure advanced equipment, stability and economy, providing customers with professional and satisfactory AAC intelligent products overall solution.

We sincerely look forward to visits and exchanges from all walks of life, and jointly contribute to the development of green building materials and the promotion of global carbon neutrality.

Certificate Of Honor
  • Certificate
  • Certificate
  • Certificate
  • Certificate
  • Certificate
  • Certificate
News
Message Feedback

industry knowledge

How does Jiangsu Runding's AAC process formula innovation affect the performance of its AAC Mould Tilting Crane & Hoister?

1. The impact of the innovation of AAC process formula on the production process
The AAC production process usually includes multiple links such as raw material mixing, casting and molding, and steaming, each of which has an important impact on the quality of the final product. In terms of the innovation of AAC process formula, Runding has made the quality of AAC products more stable by optimizing the proportion of raw materials such as cement, lime, gypsum, aluminum powder, and adjusting the mixing and pouring process, while improving the strength and compressive resistance of the products.

Based on these innovations, the design of AAC Mould Tilting Crane & Hoister has also been optimized accordingly. Specifically, by improving the sealing of the mold and the precise control of the mixture during the pouring process, Runding can ensure that each batch of raw materials is more uniform during the pouring process, which makes the load of the mold tilting crane and hoist more balanced during operation, reducing the equipment burden caused by uneven raw materials or weight deviation, extending the service life of the equipment and reducing the failure rate.

2. Optimization of equipment performance through process formula innovation
Improve equipment stability:
With the improvement of the formula in the AAC production process, Runding can more accurately control the density and strength of the product, thereby reducing the equipment vibration and instability that may occur during the pouring process. As a key equipment that carries a large number of concrete forming molds, the stability of AAC Mould Tilting Crane & Hoister directly affects the smoothness of the entire production line. By improving the process formula, Runding makes the load distribution of the equipment more uniform during operation, reduces the equipment vibration caused by uneven materials, and thus improves the stability and operation accuracy of the equipment.

Improve production efficiency:
Runding's AAC process formula innovation not only improves product quality, but also improves production efficiency. By optimizing the raw material ratio, Runding reduces the waste of raw materials in the production process and improves the smoothness of the production process. AAC mold tilting cranes and hoists play a vital role in this process. They need to carry and accurately operate the concrete forming molds with improved formulas. Runding's equipment can complete the tilting and lifting operations of the mold more efficiently, greatly improving the overall efficiency of the production line.

Reduce energy consumption and costs:
Runding's AAC process formula innovation effectively reduces energy consumption and raw material costs. For example, by improving the mixing and pouring formula, Runding can reduce its dependence on energy without sacrificing product quality, reducing the operating costs of the entire production line. For AAC mold tilting cranes and hoists, the new formula can optimize the operating procedures, such as reducing unnecessary lifting times and adjusting the operating frequency, thereby saving energy and reducing operating costs.

3. How AAC process formula innovation meets international market demand
With the increasing demand for green building materials and high-efficiency building materials in the international construction industry, AAC products, as a lightweight, heat-insulating and environmentally friendly building material, have become a popular choice in the global construction industry. In order to adapt to the global market's requirements for AAC product quality and production efficiency, Runding has further improved the performance of AAC mold tilting cranes and hoists through process formula innovation.

Adapt to different market needs:
The international market has different specifications and standards for AAC products. Runding's AAC process formula innovation enables its products to be flexibly adjusted according to the needs of different regions. For example, some countries have higher requirements for the compressive strength of AAC, while others are more concerned about its thermal and sound insulation performance. Runding precisely controls the ratio of raw materials and various parameters in the production process, so that AAC mold tilting cranes and hoists can operate stably under different production conditions, ensuring that the final product meets the diverse needs of the international market.

Comply with green building material standards:
The global demand for green building materials continues to rise. As a low-energy, low-emission building material, AAC is favored by more and more countries. Runding has reduced its dependence on fossil energy and improved the environmental performance of its products by optimizing the AAC process formula. At the same time, Runding's AAC Mould Tilting Crane & Hoister can efficiently complete various tasks during the production process, reduce waste and energy waste, meet global green building material standards, and further enhance Runding's competitiveness in the international market.
